MaxiMem - The „big“ lab membrane unit - batch size 200 ml - 100l

The big laboratory membrane filtration system - MaxiMem

The concept:
A flexible unit for all pressure driven membrane processes: reverse osmosis, nanofiltration, ultrafiltration and microfiltration. Easy change of membrane module: flat-channel or tubular ceramic for screening of membranes and spiral wound modules for larger membrane area and scale-up. Feed vessel with 2.5 or 5 l volume or any external feed vessel, big enough for all lab applications.

Complete system:

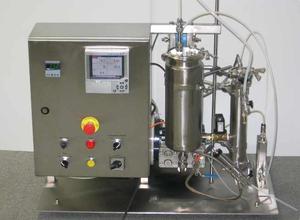

The MaxiMem is a complete filtration system on a stainless steel frame. The feed pump is frequency controled. The stainless steel control cabinet contains a PID temperature controler for the jacketed feed vessel or heat exchanger and the membrane modules. Electronic display and data recording of pressure, temperature, feed flow and optionally permeate flow.

    Applications:
  • reverse osmosis, nanofiltration, ultrafiltration, microfiltration
  • concentration, diafiltration, loop operation, batch and continuous
  • product batches of 200 ml - 100 l
  • concentration, purification and desalting of valuable products, waste stream treatment and recycling
    Technical data:
  • size 850 x 500 x 660 mm
  • minimum working volume: 200 ml
  • typical permeate flux 10 / 150 / 1250 ml/min
  • operating pressure 0 - 40 (80) bar
